Jaws 2.
1) This visual shows the preload of a 7-sequence autonomous setting. Serving as the foundation of the routine, I fused 4 computer vision pipelines via simplified kalman filter to determine a global pose of the robot in field-space with less than 1cm of error.
The Context.
After getting onboarded on Code Orange (FRC 3476), I was tasked with dealing with an issue the team faced all season-outdated code.
The Problem.
Last season's code was written in the "timed-robot" skeleton, which was very obsolete and not as advanced as the new "command-based" structure most robots operate on.
The Solution.
I integrated a 3-layer hardware abstraction system that splits robot action and motor hardware functionality from subsystem goals. I also introduced a finite state machine to improve the overall readability and flow of the code.
The Outcome.
As a result of the new software structure, I was able to improve autonomous routine performance by 33% and streamline troubleshooting during high-stress competitions.

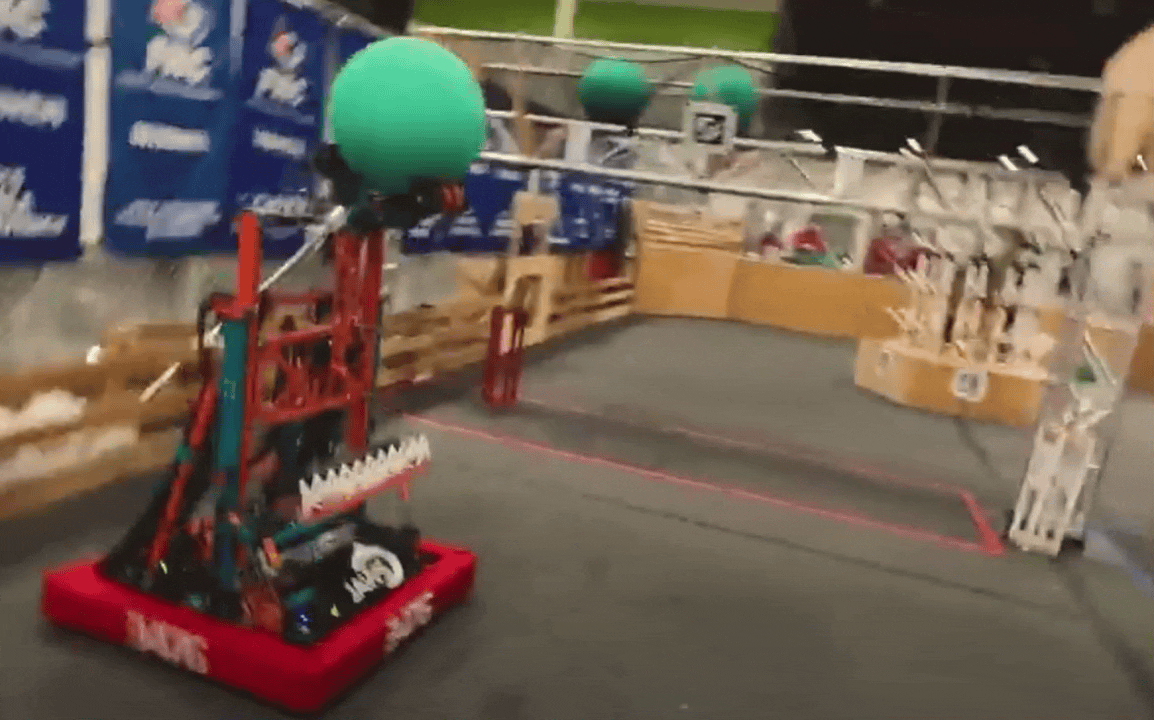

Image 2) This graphic shows the scoring capabilities of the robot. It was able to collect and eject large yoga balls into an 8 foot net area.

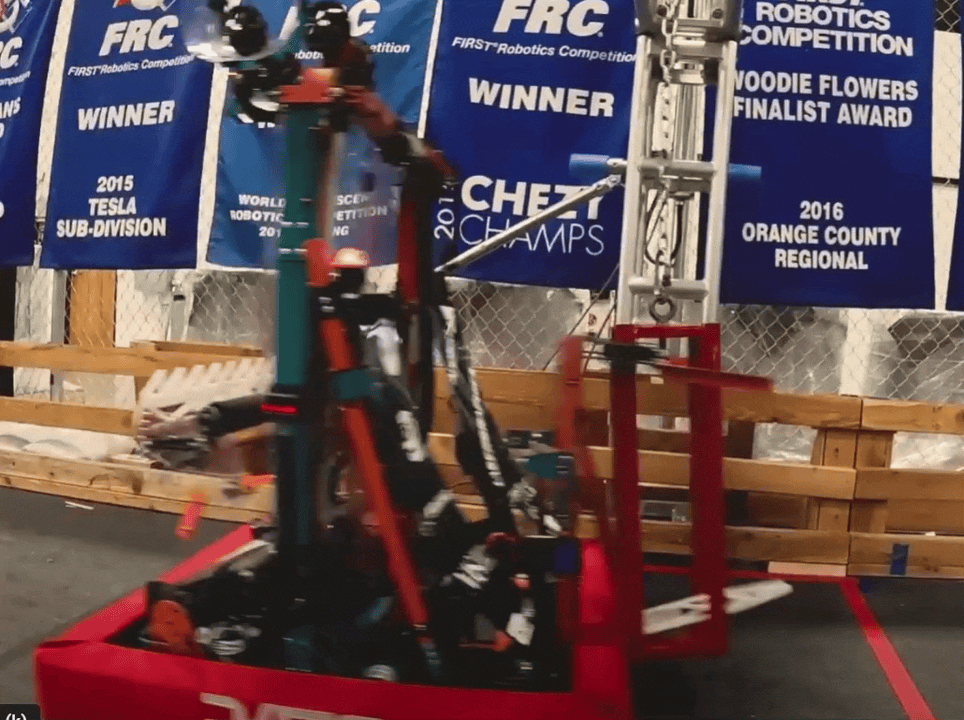

Image 3) This video represents the climbing sequence for Jaws 2, lifting the 130+ pound robot off the ground via precise servo timing and beam break sensing.
